Tunnel Size |
|
:470 mm (W) x 1530 mm (H) |
|
|
|
:18,50 in (W) x 60,24 in (H) |
|
Dimensions |
|
|
|
Length |
|
:6280 mm (247,25 in) |
|
Height |
|
:1950 mm (76,77 in) |
|
Width |
|
:1740 mm (68,50 in) |
|
Approx. Weight Unpacked |
|
:1600 kg (3527 lbs) |

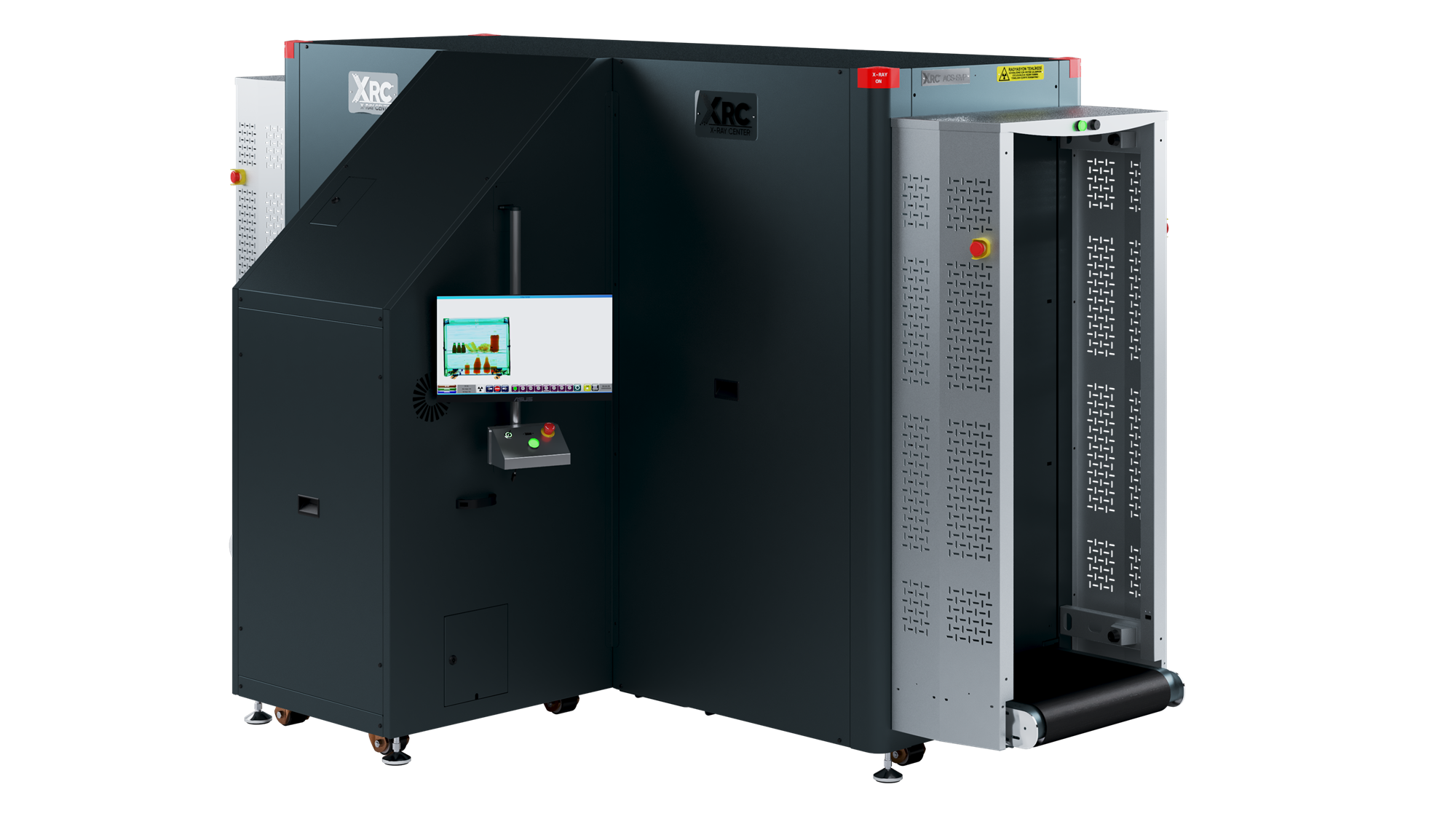

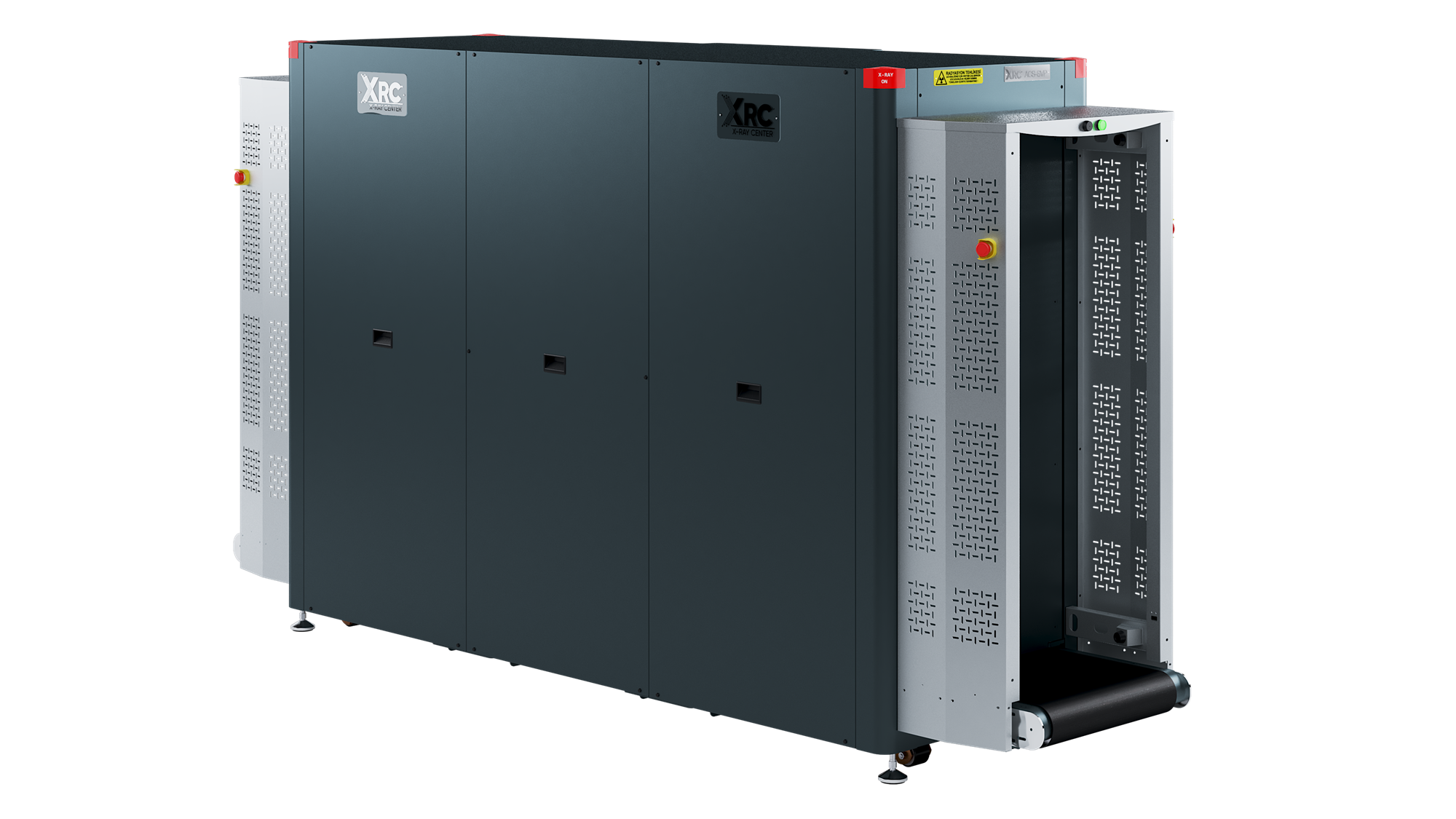

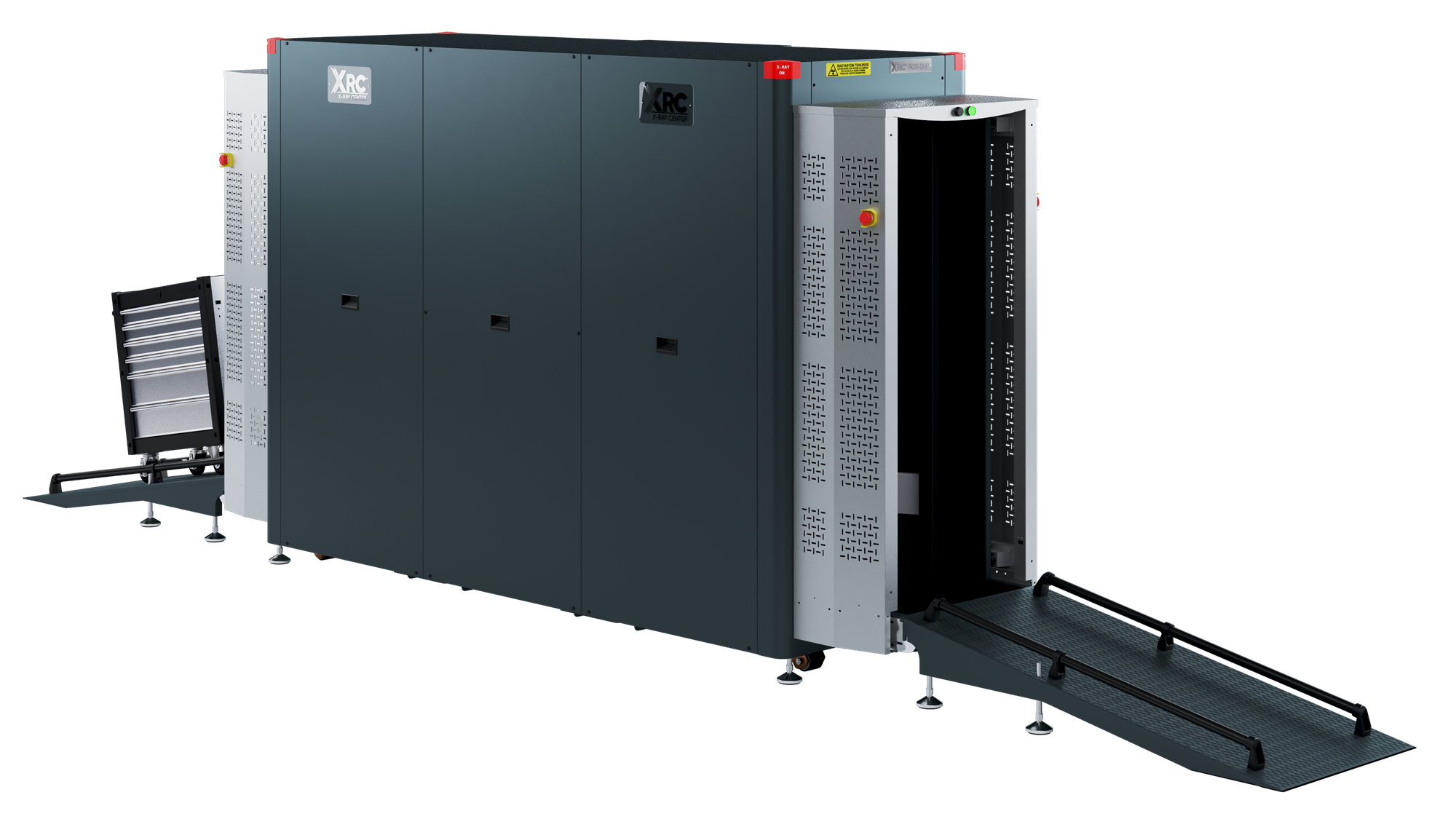

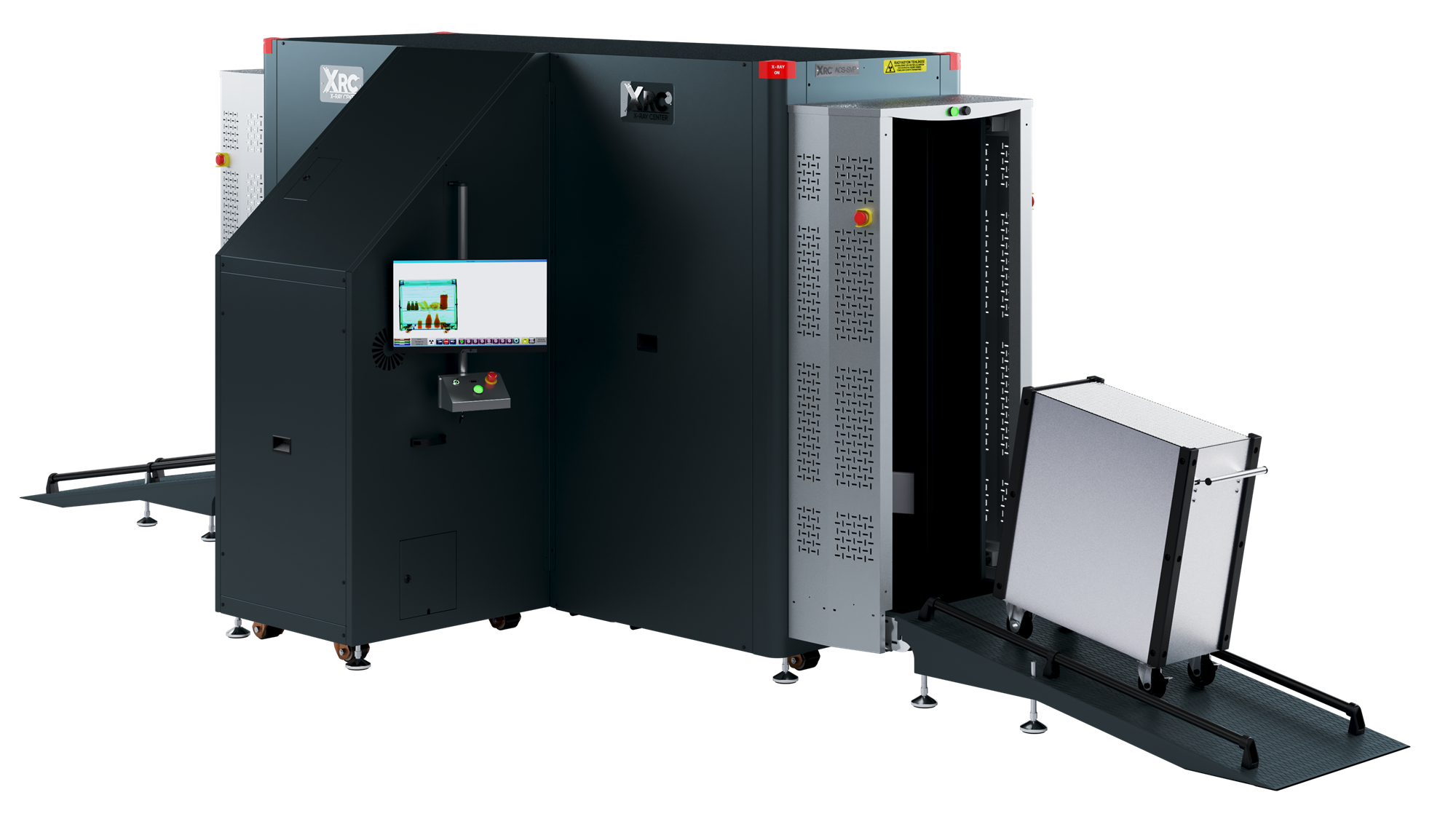

The XRC® ACS SVP is a one of a kind X ray screening system purpose built for airline food trolleys Engineered from the ground up, it
features a unique detector array that enables complete inspection of trolley contents using an economical dual energy, single view
design Like all systems in the XRC® product line, it delivers high quality imaging, advanced image enhancement, and robust post
processing features for exceptional clarity and threat detection Custom engineered automatic doors replace traditional lead curtains,
streamlining the loading process and enabling efficient screening of up to three trolleys per minute
